Flame View Heater

Margin Stoves, Flame View Heater, wood cook stove

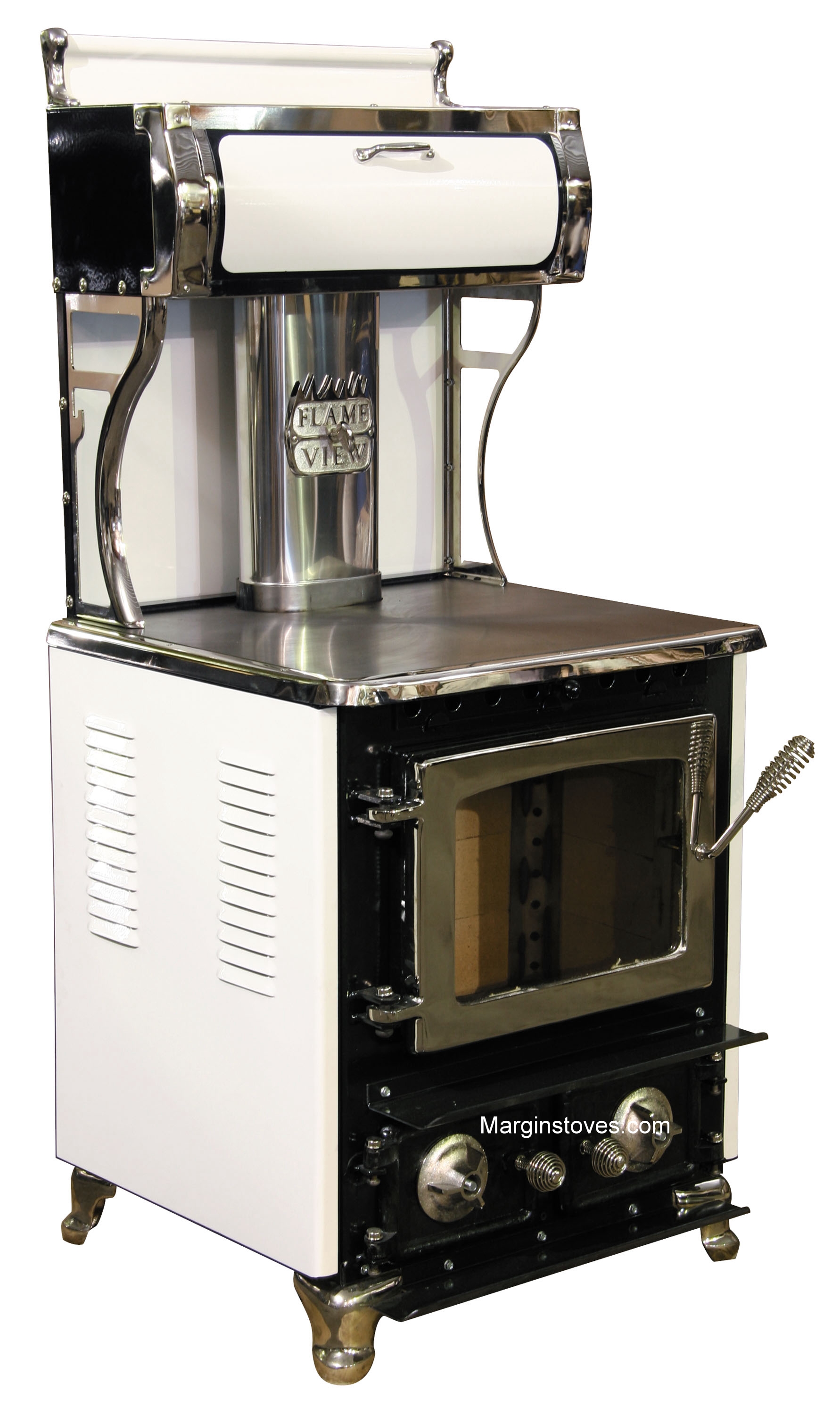

Flame View Heater Model 2015 (Full Closet) Unit Overall Width 29", Unit overall Height 64" Height to cooking surface 34-1/2" , Cooking top size 23x27, Fire box Size 22" L 12" W , 18" D, Exhaust Flue Size 7", Approx Heating Capacity 1800 Sq. Ft., Approx Shipping Weight 425 Lbs.

horizontal rule

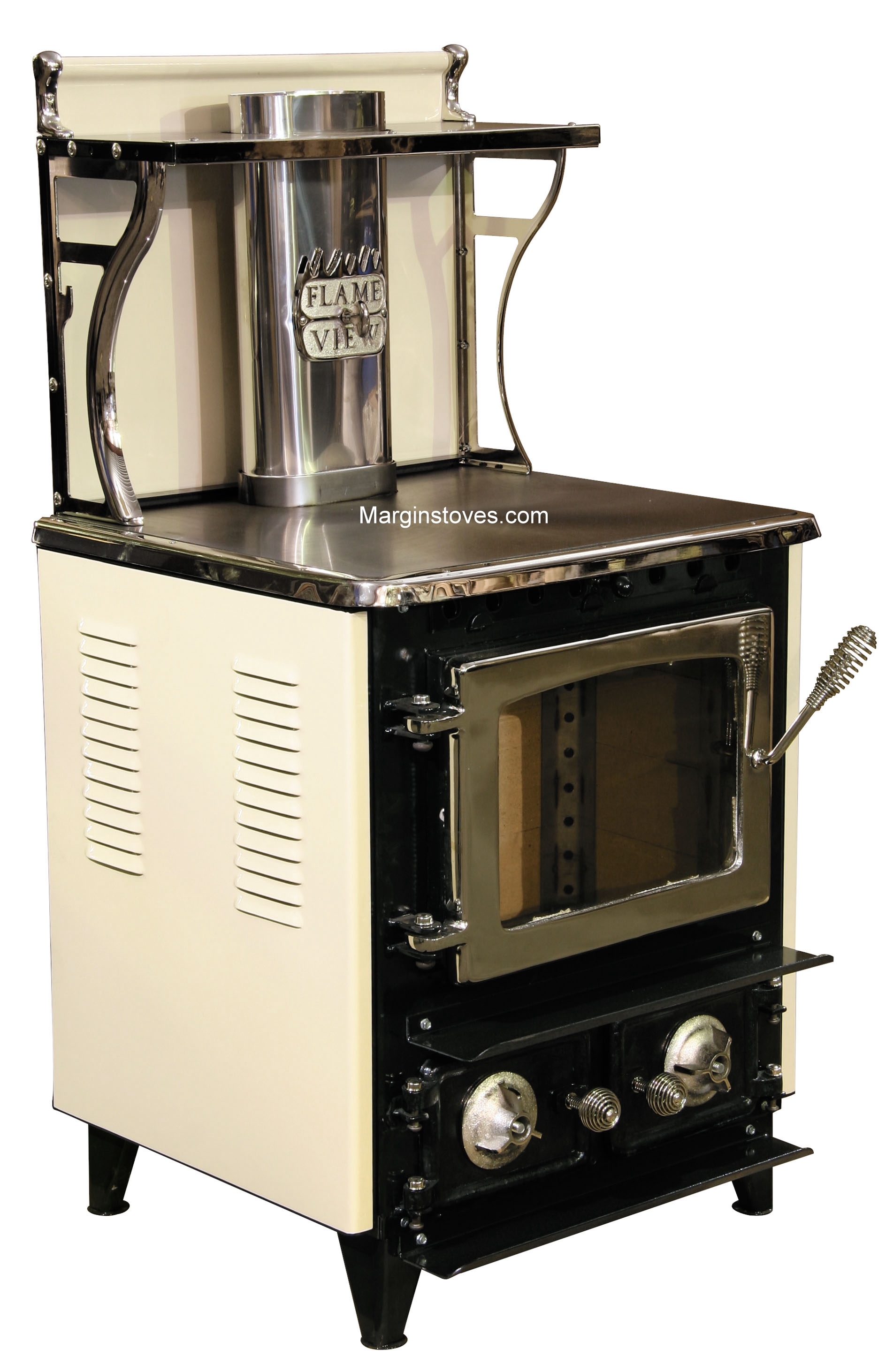

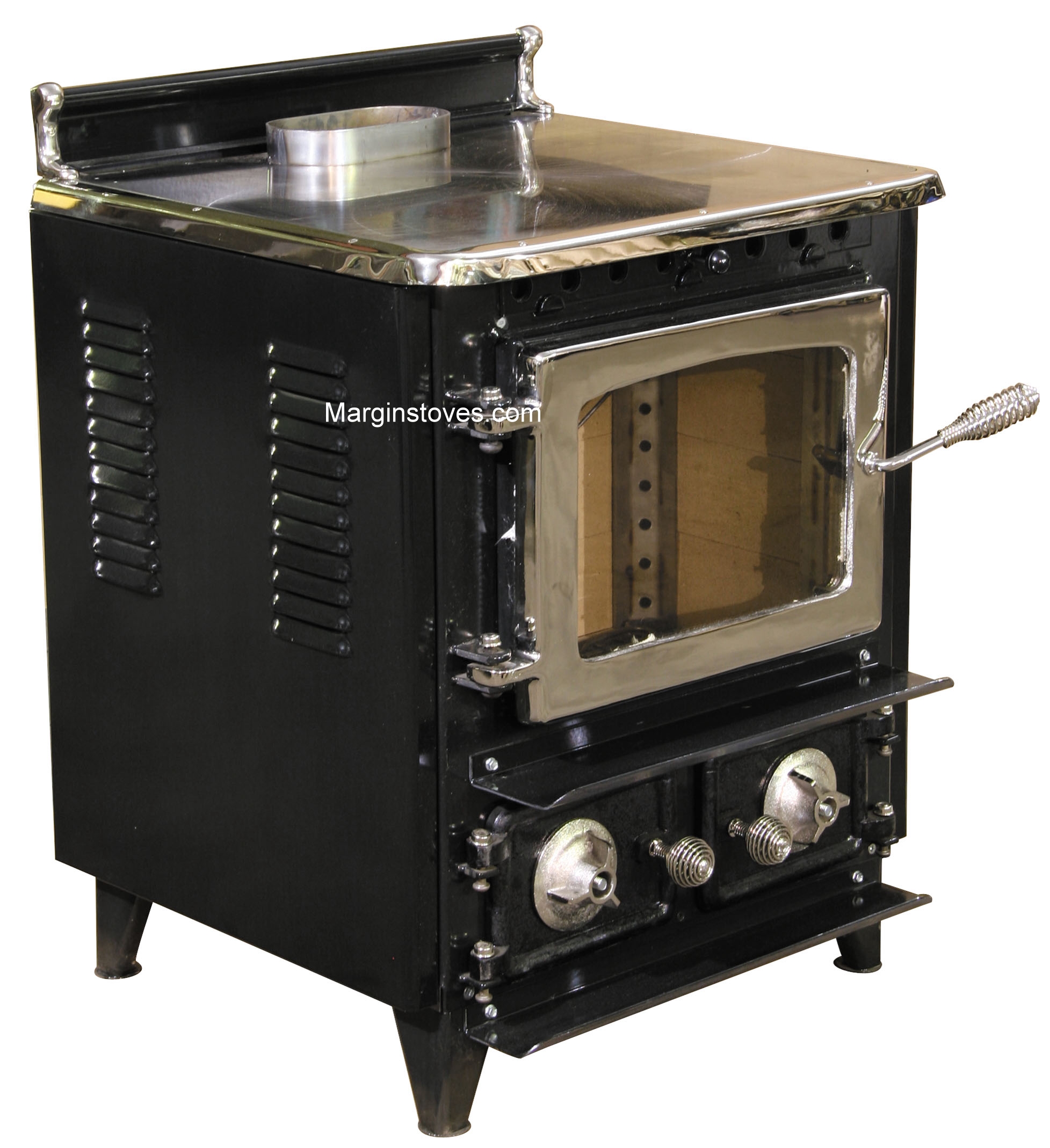

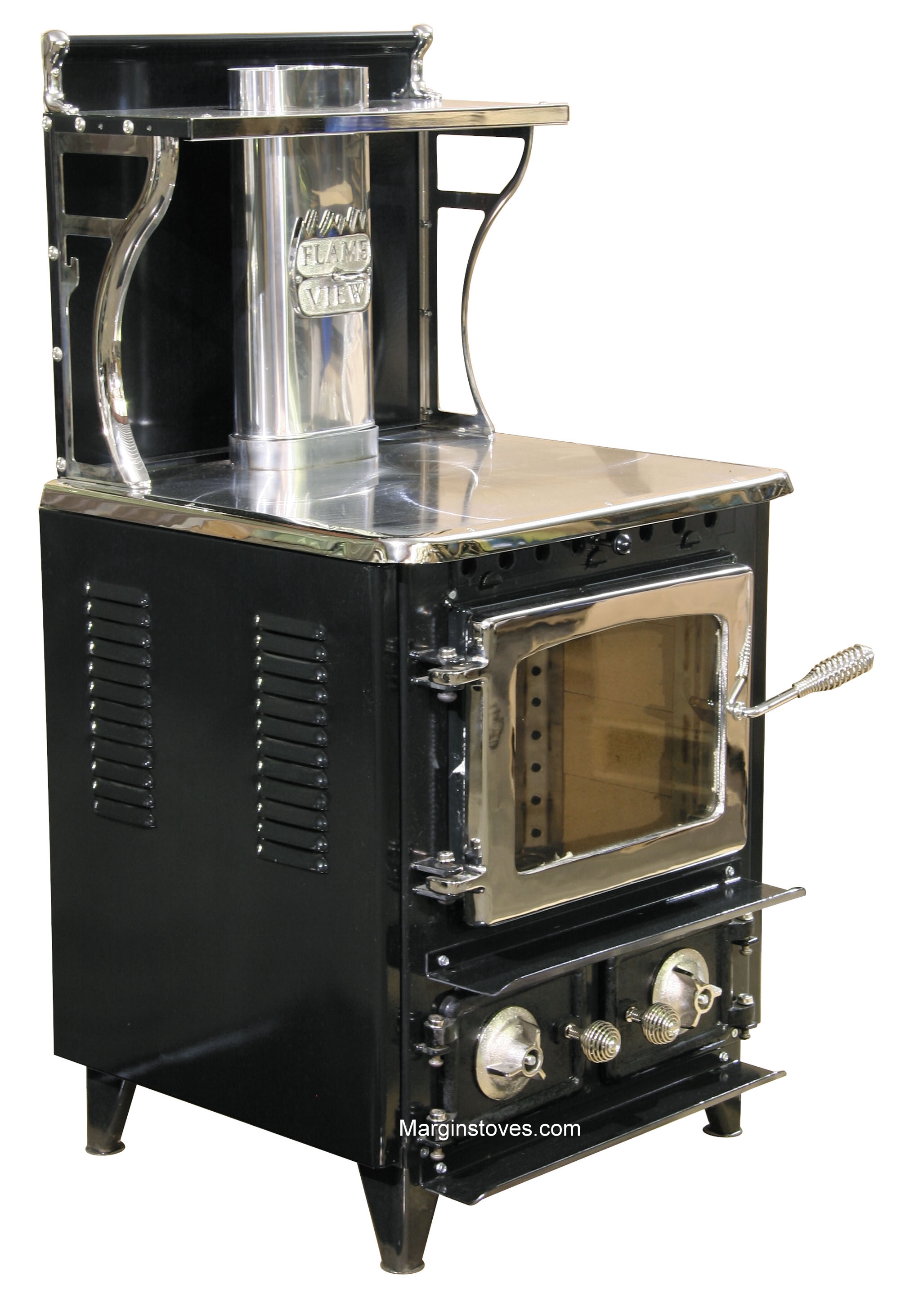

Margin Stoves, Flame View Heater, wood cook stove, black Margin Stoves, Flame View Heater, wood cook stove, with shelf Margin Stoves, Flame View Heater, wood cook stove, low back

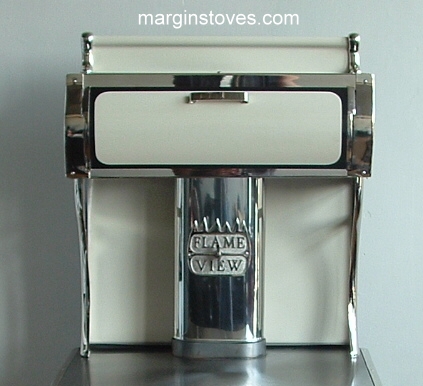

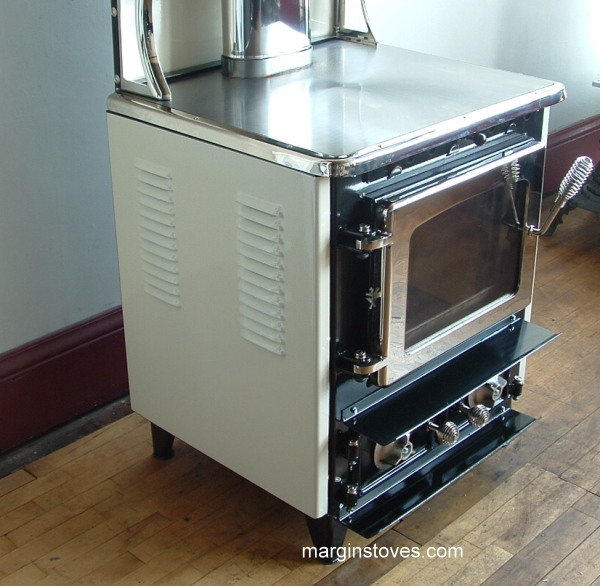

Margin Stoves, Flame View Heater, wood cook stove, top view Margin Stoves, Flame View Heater, wood cook stove, side view Margin Stoves, Flame View Heater, wood cook stove, front view Margin Stoves, Flame View Heater, wood cook stove, bottom Margin Stoves, Flame View Heater, wood cook stove, warmer

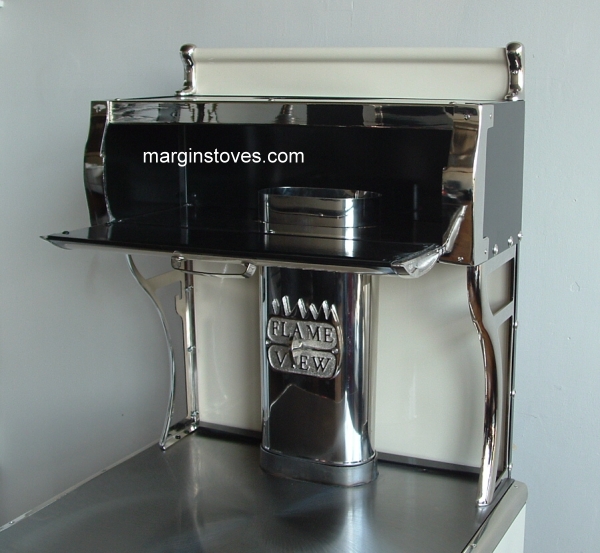

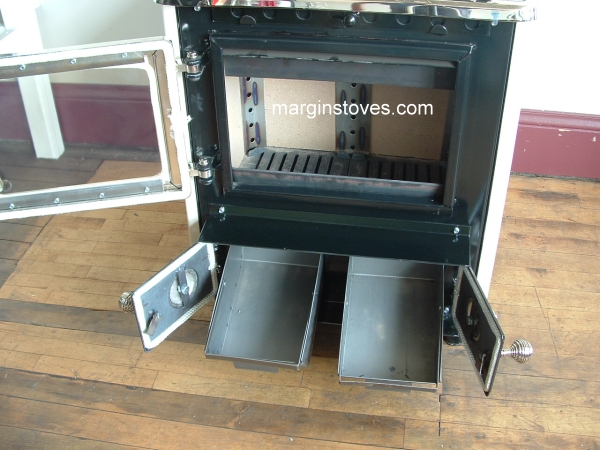

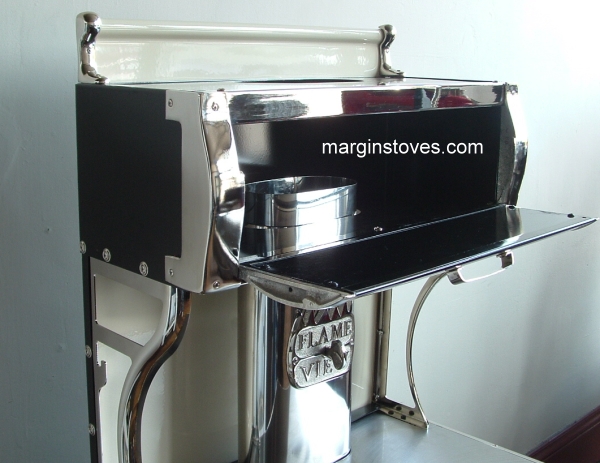

Margin Stoves, Flame View Heater, wood cook stove, warmer open Margin Stoves, Flame View Heater, wood cook stove, grates

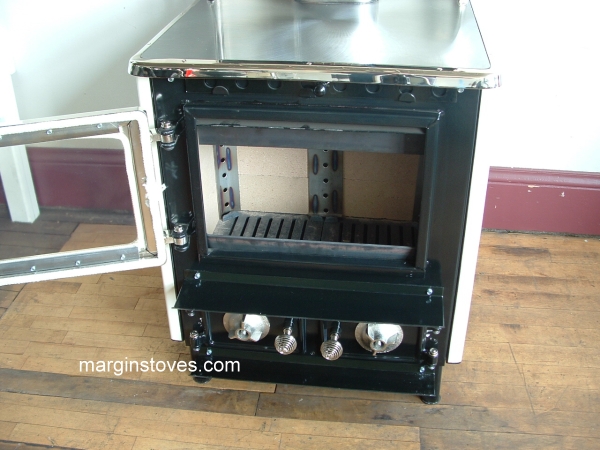

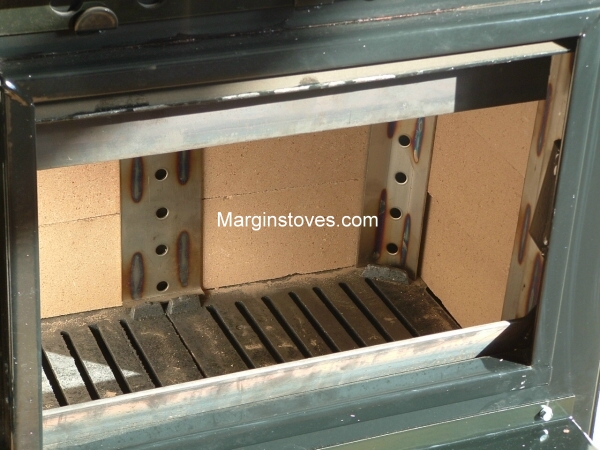

Firebox interior

Note: Standard size firebrick

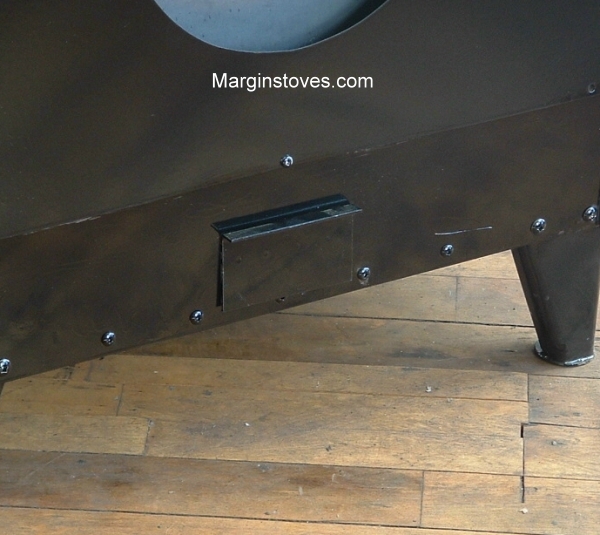

 Margin Stoves, Flame View Heater, wood cook stove, back Margin Stoves, Flame View Heater, wood cook stove, clean out

Note: Clean out door

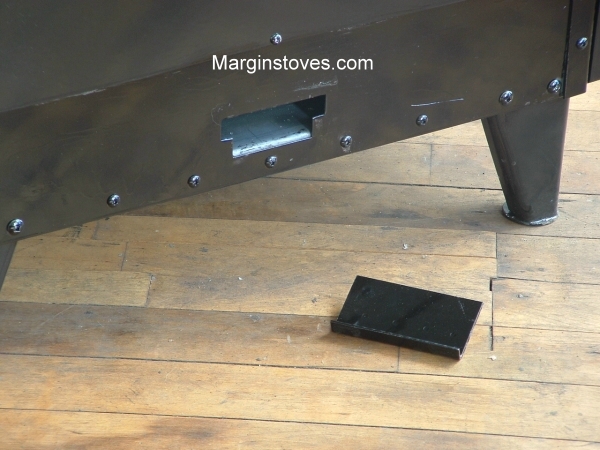

 Margin Stoves, Flame View Heater, wood cook stove, clean out open

Clean out door removed



STANDARD FLAME HEATER VIEW FEATURES INCLUDE:

  1. Heating capacity of 2,000 square feet or more
  2. Large, airtight firebox will take up to a 22 inch log for an all night burn
  3. Side load firebox enables you to keep cooking or canning without moving pots
  4. High-temperature glass firebox door lets you watch and enjoy the fire
  5. Takes standard firebrick that is inexpensive and easy to replace and install
  6. Dual bell draft supply for glass wash and fast start-up
  7. Double-plated steel cook top for a strong and evenly heated cook top
  8. Cast iron wood grate system
  9. Exclusive "Air Jet" re-burn design
  10. Large ash trays below grates for convenient ash removal
  11. Porcelain exterior finish throughout, standard in black
  12. Porcelain black oven interior
  13. Nickel plated trim
  14. Oven draft control to circulate hot air around oven
  15. Ships with FREE Poker and ash scraper
  16. Limited one-year warranty
Safety tested to ULC-S627     ULC-S627
 UL-1482    UL-1482



Minimum Clearances to Combustibles

Back wall to unit 14"

Back wall to pipe 15"

Side wall to unit 12"

Side wall to pipe 23"

Fuel door to front wall 48"



horizontal rule

Margin Stoves, Flame View Heater Model   PRICE

No Top/No Back (4 inches above stove top)   $1,375

horizontal rule

horizontal rule



FLAME VIEW HEATER OPTIONS



PRICE

horizontal rule
Color: Black N/C
Color: White or Almond   $ 185
Single stainless steel hot water coil   $ 105
Double stainless steel hot water coil -80 Gallon plus heating capacity   $ 162
Ornamental Trivets   $ 115
Thermostat Control

$ 130
Nickel Legs

$ 110
10" Electric Fan & Controls (fits into the back of the stove and blows hot air out the vents in the stove front and side panels)   $ 405

Flame View Heater Order or Shipping Quote Click Here



horizontal rule



Margin Stove delivery time

Delivery time is running about

4-6 Weeks
